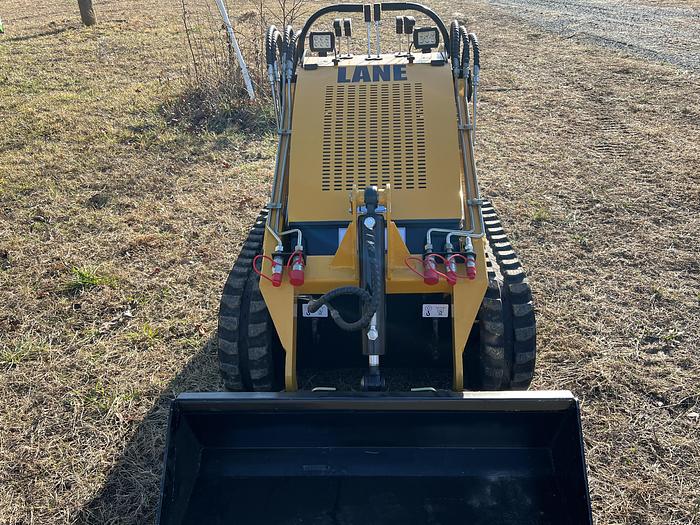

2024 LANE LNEMS23T/ MINI SKID STEER

Make: LANE

Model: LNEMS23T

Year: 2024

Engine: Gas

HP: 23

Aux Hyd: Yes

Tracks: Yes

Bucket: Yes

Forks: Yes

LANE MINI SKID

Rated Load: 661lbs

Max Load: 882lbs

Max lifting Force: 1300lbs+-

Bucket Capacity: 5.2CF

Driving Speed: 3.5mph

System Pressure Bar: 3500-4300psi

Operating Weight: 2161lbs

Maximum Operating height: 96”

Height Bucket Pin: 74”

Overall Height: 53”

Max Height on Bucket Level State: 71”

Total Length Without Bucket: 66”

Total Length (with bucket): 87”

Dumping height: 59”

Dumping Distance: 18”

Bucket Overturning Angle On The Ground: 27”

Max Bucket Swing Angle: 114”

Wheel Base: 33”

Ground Clearance: 6”

Tail Length: 11”

Overall Width: 45”

Bucket Width: 47”

Location: Va

I have Financing and Freight in US and Canada

Thank you

Tom Lane

GF Equip Sales LLC

434-760-0398
